McLean Model 600
Production & Second Operation Lathe
In the spectrum of lathes, from hand operated to CNC, we feel we’ve developed an affordable compromise.
Versatility & Efficiency
Taking a lathe with a 9” swing, we’ve added air powered slides with a controller to operate the movement of the collet, spindle, and each slide. This allows an unskilled operator to make thousands of parts with greater speed and accuracy than with comparably priced lathes. With the versatility of the McLean System, you have an effective alternative to higher-priced equipment.
2 axis production lathe
This machine is well-suited for dedicated applications, or it can be changed over to run multiple parts. The Model 600 can be placed alongside of a CNC lathe, screw machine, or molding machine to allow the operator to perform a second operation.
The Model 600 comes standard with a Front Slide and a Tail Slide. Other slides, including our heavy-duty slides, are also available. McLean slides are air-powered with a hydraulically controlled feed.

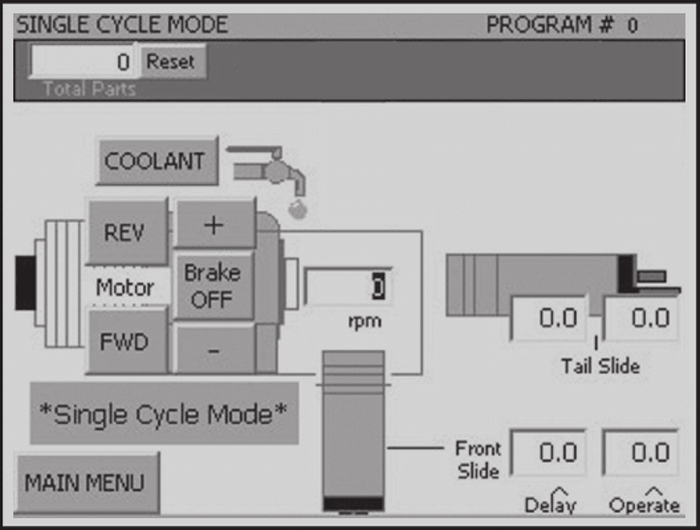

The controller features a Touch Screen and PLC. The controller operates the sequencing of the slides, spindle RPM & direction, and duration of operation. It provides program storage for six different parts and includes Total Cycle Counter.
STANDARD SLIDES

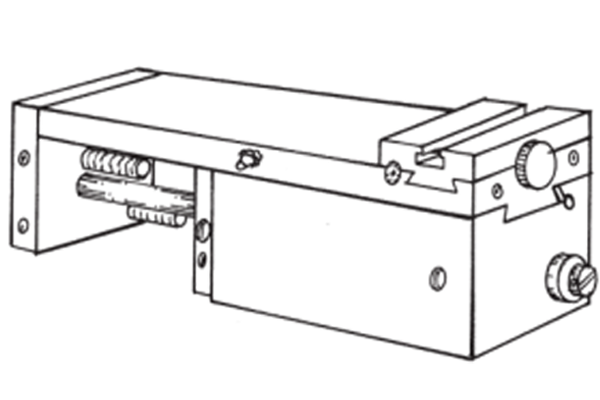

#10-135 – FRONT CROSS SLIDE
For facing, grooving, chamfering, plunge with form tools, etc. 50mm (2”) total stroke, up to 25mm (1”) hydraulically controlled feed. The remaining stroke is rapid, also rapid retract. 152 lb. push at 100 PSI.
#10-136 – TAIL SLIDE
For turning, boring, drilling chamfering, etc. 75mm (3”) total stroke, up to 25mm (1”) hydraulically controlled feed is standard. The remaining stroke is rapid, also rapid retract. 152 lb push at 100 PSI.
#10-138 – REAR CROSS SLIDE
For facing, grooving, chamfering, plunge with form tool, cut-off, etc. 50mm (2”) total stroke, up to 25mm (1”) hydraulically controlled. The remaining stroke is rapid, also rapid retract. 152 lb push at 100 PSI.
SUBPLATES
#10-297 – FRONT SUBPLATE
Use with Standard Front Slide #10-135

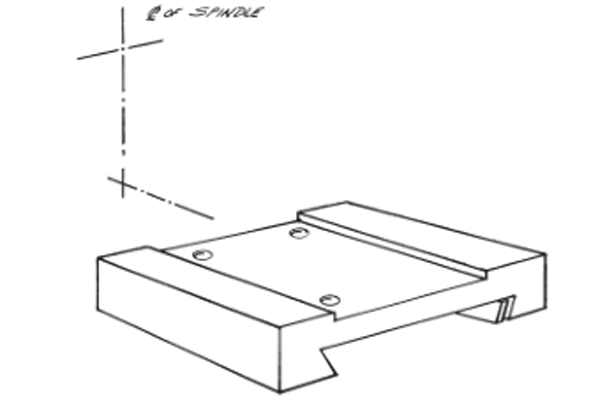

#10-298 – TAIL SUBPLATE
Use with Standard Tail Slide #10-136.
OPTIONAL TOOLING
#10-299 – FRONT & REAR SUBPLATE
Use with Standard Front Slide #10-135 and Rear Slide #10-138
#10-127 – REAR SUBPLATE
Use with Standard Rear Slide #10-138
TOOL HOLDERS
#10-274 – FRONT SLIDE TOOL HOLDER
Holds 3/8” and 1/2” square shank tool bits. Holds tool right side up.

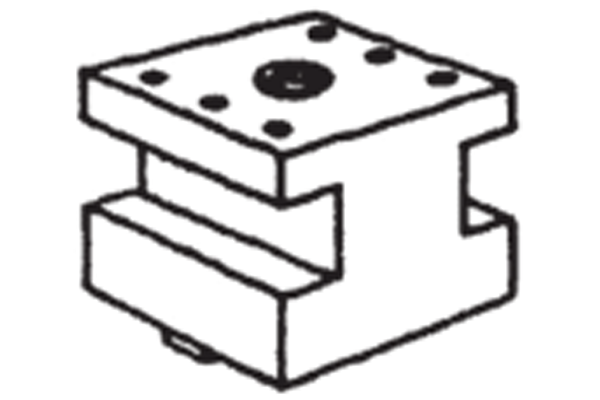

#10-275 – REAR SLIDE TOOL HOLDER
Holds 3/8” and 1/2” square shank tool bits. Holds tool upside down.

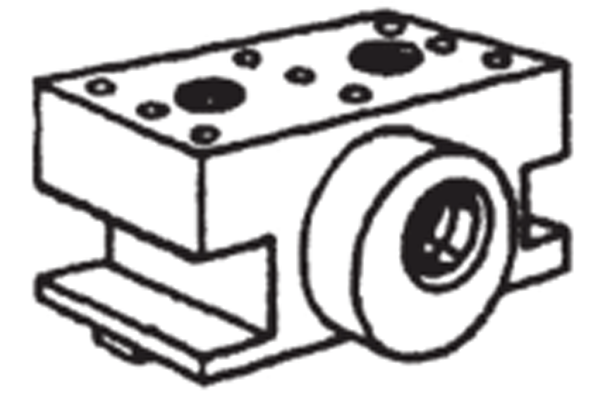

#10-276 – TAIL SLIDE TOOL HOLDER ASSEMBLY
Holds 3/8” and 1/2” square shank tool bits. Features a 1” diameter hole that receives a 5/8” I.D. eccentric bushing which, when rotated, raises or lowers the tool or round shank turret tooling. Includes bushing.
#10-272 – VERTICAL ADJUSTABLE TOOL HOLDER
For front or rear slides. Puts your tool exactly on center. Holds 3/8” square shank tool bits.
GENERAL LATHE SPECIFICATIONS
Spindle Speeds: 60-2100 RPM Variable Std. – 3200 RPM Optional
Spindle Construction: Single Piece with Precision Ball Bearings
Spindle Capacity: 26.9 mm (1-1/16”) Diameter Thru-Spindle with 5C Collet
Spindle Drive Motor: 1 hp
Brake: Electronic
Dovetail Width: 85.73mm (3-3/8”)
Spindle Centerline to Dovetail: 114.30mm (4-1/2”)
Length of Bed from Face of Spindle: 330mm (13”)
Swing Over Bed: 228mm (9”)
Maximum Part Diameter: 152mm (6”)
Overall Height: 1,460mm (57-1/2”)
Overall Width: 889mm (35”)
Overall Length: 1,009mm (39-3/4”)
Power Requirements: 220 VAC – 50/60 Hz Single Phase
Air Requirements: 5.5 – 7 BAR (80 – 100 PSI)
